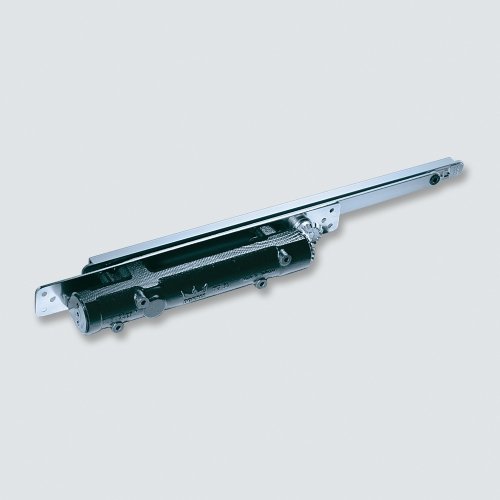

ITS 96 - Concealed Door Closer with Cam-Action Technology
Uncompromising technical sophistication
The DORMA ITS 96 has ushered in a new era in door closer technology. The closer body and slide channel are so compact that they can be installed out of sight in doors and their frames. These devices offer the same high quality expected of DORMA door closers, as characterised by their ease of operation for the user, and wide range of functions. Thanks to the exceptionally slender dimensions of the unit, the DORMA ITS 96 can be installed in virtually all doors with thicknesses of 40 mm or more, and offers all the advantages of quality assured manufacture with third-party auditing.
Certified to ISO 9001.
The DORMA ITS 96 has ushered in a new era in door closer technology. The closer body and slide channel are so compact that they can be installed out of sight in doors and their frames. These devices offer the same high quality expected of DORMA door closers, as characterised by their ease of operation for the user, and wide range of functions. Thanks to the exceptionally slender dimensions of the unit, the DORMA ITS 96 can be installed in virtually all doors with thicknesses of 40 mm or more, and offers all the advantages of quality assured manufacture with third-party auditing.
Certified to ISO 9001.
Benefits:
For the distributor
Low inventory costs and reduced stocking requirements thanks to streamlined modular system and separate packaging of closer body and slide channel assemblies.
Tailor-made applications with special accessories.
Low inventory costs and reduced stocking requirements thanks to streamlined modular system and separate packaging of closer body and slide channel assemblies.
Tailor-made applications with special accessories.
For the installer / fabricator
Non-handed system.
Can be incorporated within the door pre-fabrication process, allowing complete installation in the factory.
Easy adjustment of the closing strength, closing speed and latch action after hanging of the doors.
Non-handed system.
Can be incorporated within the door pre-fabrication process, allowing complete installation in the factory.
Easy adjustment of the closing strength, closing speed and latch action after hanging of the doors.
For the architect / specifier
Unblemished appearance of prestige doors thanks to concealed installation.
Ideal for doors integral to the interior design.
Unblemished appearance of prestige doors thanks to concealed installation.
Ideal for doors integral to the interior design.
For the user
Optimum protection against vandalism thanks to the concealed installation.
Enhanced user convenience and fully controlled, reliable closing with adjustable latch action.
Cushioned limit stay with progressive damping for protection of wall and door.
Optimum protection against vandalism thanks to the concealed installation.
Enhanced user convenience and fully controlled, reliable closing with adjustable latch action.
Cushioned limit stay with progressive damping for protection of wall and door.

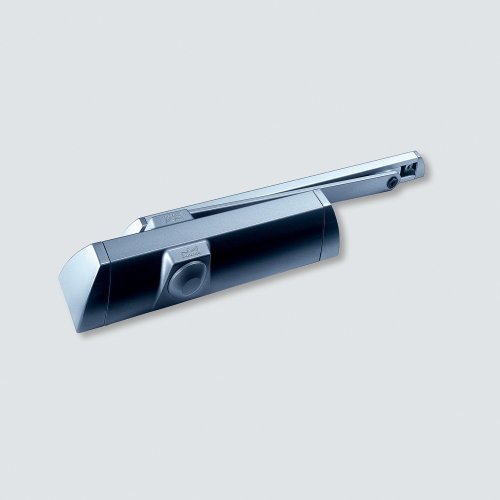

TS 90 Impulse - Basic slide channel door closer with cam action technology
High-tech for the global market
The DORMA TS 90 Impulse combines technical superiority with outstanding value, and unites advanced design with convenient functionality – all on the basis of its heart-shaped cam. With its installation versatility and inherent functional reliability, it is ideal for virtually any application.
DORMA TS 90 Impulse:
Certified to ISO 9001
The DORMA TS 90 Impulse combines technical superiority with outstanding value, and unites advanced design with convenient functionality – all on the basis of its heart-shaped cam. With its installation versatility and inherent functional reliability, it is ideal for virtually any application.
DORMA TS 90 Impulse:
Certified to ISO 9001
Benefits:
For the distributor
Unique DORMA cam action technology for the entry-level segment, compliant with EN 1154.
Complete package for easy stocking.
Sets new standards to open up new markets.
Unique DORMA cam action technology for the entry-level segment, compliant with EN 1154.
Complete package for easy stocking.
Sets new standards to open up new markets.
For the installer / fabricator
Easy to fix without mounting backplate.
Non-handed.
Four installation arrangements with one model.
Proven DORMA quality for long service life.
Easy to fix without mounting backplate.
Non-handed.
Four installation arrangements with one model.
Proven DORMA quality for long service life.
For the architect / specifier
Proven technology of the heart-shaped cam.
Cost-efficient slide channel door closer for interior doors.
Proven technology of the heart-shaped cam.
Cost-efficient slide channel door closer for interior doors.
For the user
Convenient, low-resistance opening with fully controlled closing.
Two regulating valves for precise adjustment of closing speed.
Available with hold-open and cushioned limit stay options.
Convenient, low-resistance opening with fully controlled closing.
Two regulating valves for precise adjustment of closing speed.
Available with hold-open and cushioned limit stay options.

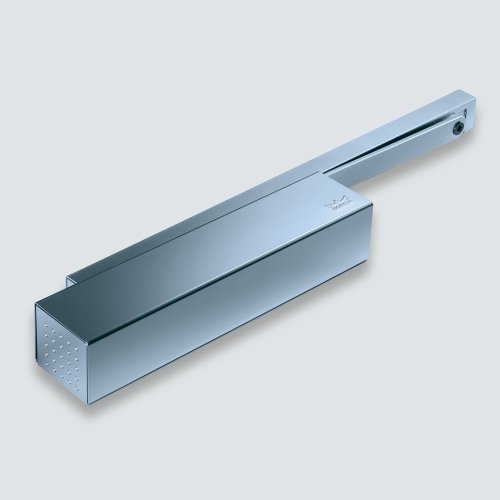

TS 93
More compact, lighter and more elegant.
DORMA has set new standards with its TS 93 cam-action door closer system. Offering further technical refinements and enhanced sophistication, it constitutes an even more impressive specification - thanks to:
Smaller dimensions
Concealed fixings
Height-adjustable standard (N) slide channel
30 mm high EMF, EMR and GSR slide channels
Mechanically secured cover
Delayed action feature as standard
Simple, fast installation
low weight
Rapidly decreasing opening force
Unlike rack and pinion slide-channel door closers, the DORMA TS 93 system with its the linear drive mechanism and heartshaped cam ensures that the resistance encountered when opening the door decreases almost instantly with the opening action. So even children, the elderly and handicapped people have no problem in opening the door.
DORMA has set new standards with its TS 93 cam-action door closer system. Offering further technical refinements and enhanced sophistication, it constitutes an even more impressive specification - thanks to:
Unlike rack and pinion slide-channel door closers, the DORMA TS 93 system with its the linear drive mechanism and heartshaped cam ensures that the resistance encountered when opening the door decreases almost instantly with the opening action. So even children, the elderly and handicapped people have no problem in opening the door.

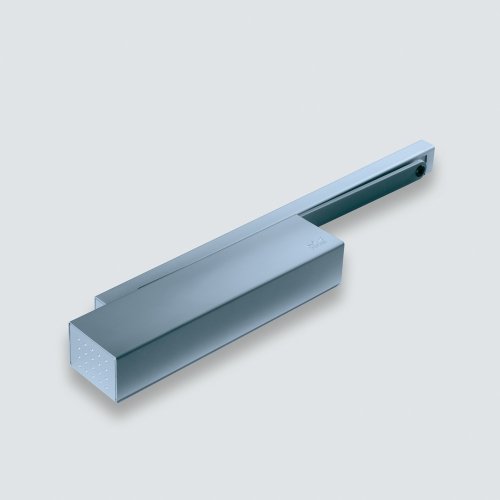

TS 92/TS 91
The universal closers for standard doors – tested and approved to EN 1154
As units designed especially for interior applications, the DORMA TS 92 and TS 91 door closers constitute the perfect complement to the DORMA TS 93 cam-action door closer system. They likewise come in the Contur design and, thanks to their linear drive mechanism with heart-shaped cam, they offer the same ease of use. Moreover, their competitive pricing combined with their outstanding level of assured quality make them particularly attractive from an economic standpoint as well.
Certified to ISO 9001
Benefits:
As units designed especially for interior applications, the DORMA TS 92 and TS 91 door closers constitute the perfect complement to the DORMA TS 93 cam-action door closer system. They likewise come in the Contur design and, thanks to their linear drive mechanism with heart-shaped cam, they offer the same ease of use. Moreover, their competitive pricing combined with their outstanding level of assured quality make them particularly attractive from an economic standpoint as well.
Certified to ISO 9001
Benefits:
For the distributor
Inexpensive cam-action technology for standard interior doors.
Low storage costs and reduced inventory requirement thanks to uniform slide channels of the Contur series.
Inexpensive cam-action technology for standard interior doors.
Low storage costs and reduced inventory requirement thanks to uniform slide channels of the Contur series.
For the fabricator
Non-handed.
Easy to fix and quickly adjustable.
Non-handed.
Easy to fix and quickly adjustable.
For the architect/specifier
Excellent value for money.
Uniform appearance throughout the entire Contur slide channel range.
Excellent value for money.
Uniform appearance throughout the entire Contur slide channel range.
For the user
Exceptional ease of use and fully controlled closing action.
Optimum adaptability of the closing speed with reliable latching thanks to two regulating valves.
Exceptional ease of use and fully controlled closing action.
Optimum adaptability of the closing speed with reliable latching thanks to two regulating valves.

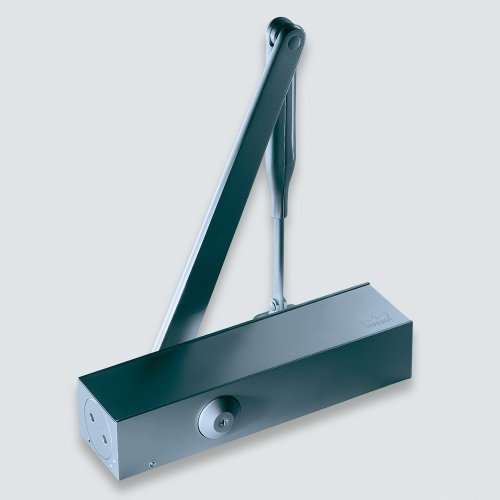

Door closer TS 83 with scissor arm
Easy-action door closer with “thinking” backcheck
Easy to fix and even easier to adjust. The door closer for almost every door size and application. Decades of experience have gone into the development of the DORMA TS 83. The result is user comfort coupled with outstanding versatility. It can be adjusted to suit almost all types of door. It can even be supplied with additional anti-corrosion protection for exposed applications or aggressive conditions. Fixing couldn’t be easier – and last but not least – it’s engineered for excellence.
Certified to ISO 9001.
Benefits
Easy to fix and even easier to adjust. The door closer for almost every door size and application. Decades of experience have gone into the development of the DORMA TS 83. The result is user comfort coupled with outstanding versatility. It can be adjusted to suit almost all types of door. It can even be supplied with additional anti-corrosion protection for exposed applications or aggressive conditions. Fixing couldn’t be easier – and last but not least – it’s engineered for excellence.
Certified to ISO 9001.
Benefits
For the distributor
Low inventory costs and reduced stocking requirement thanks to streamlined product range.
Practical and effective solutions to meet special applications thanks to comprehensive choice of accessories.
Low inventory costs and reduced stocking requirement thanks to streamlined product range.
Practical and effective solutions to meet special applications thanks to comprehensive choice of accessories.
For the installer
Easy to fix.
Can be “tailored” to the requirements of the door by simple adjustment.
Just one model for RH (DIN-R, ISO 5) and LH (DIN-L, ISO 6) doors, and for standard and frame/lintel fixing.
Spring strength range EN 3–6 to suit virtually every application.
Can be “tailored” to the requirements of the door by simple adjustment.
Just one model for RH (DIN-R, ISO 5) and LH (DIN-L, ISO 6) doors, and for standard and frame/lintel fixing.
Spring strength range EN 3–6 to suit virtually every application.
For the specifier/architect
Compact closer design and sturdy flat-form arm assembly.
Wide range of standard functions supplemented by optional extras.
Suitable for fire doors.
Compact closer design and sturdy flat-form arm assembly.
Wide range of standard functions supplemented by optional extras.
Suitable for fire doors.
For the user
Optimum wall and door protection thanks to “thinking” backcheck.
Closing speed virtually unaffected by temperature fluctuations.
Proportionately low opening resistance thanks to high mechanical efficiency.
Optimum wall and door protection thanks to “thinking” backcheck.
Closing speed virtually unaffected by temperature fluctuations.
Proportionately low opening resistance thanks to high mechanical efficiency.

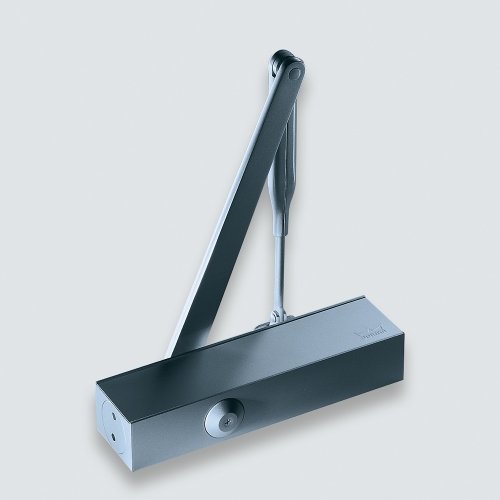

Door closer TS 73 V with scissor arm
Easy to fit, economical and with adjustable closing force
Simple, easy installation, and guaranteed quality. Tested to EN 1154. Specially designed for internal doors, including fire doors, the DORMA TS 73 V is a universal solution for doors of differing designs and styles. The flat and compact format of the TS 73 V means that there are practically no problems with installation; and tried and trusted quality is your assurance of reliability.
Certified to ISO 9001.
Benefits
Simple, easy installation, and guaranteed quality. Tested to EN 1154. Specially designed for internal doors, including fire doors, the DORMA TS 73 V is a universal solution for doors of differing designs and styles. The flat and compact format of the TS 73 V means that there are practically no problems with installation; and tried and trusted quality is your assurance of reliability.
Certified to ISO 9001.
Benefits
For the distributor
One model for all applications.
Really practical solutions for special installation situations, thanks to the wide range of accessories.
One model for all applications.
Really practical solutions for special installation situations, thanks to the wide range of accessories.
For the installer
Quick and simple to fit. Closing force, closing speed, and latching action all set with just a few manual adjustments.
Only one design for DIN-L and DIN-R doors, and for standard and framefixing.
Quick and simple to fit. Closing force, closing speed, and latching action all set with just a few manual adjustments.
Only one design for DIN-L and DIN-R doors, and for standard and framefixing.
For the designer
Compact format in timeless design.
Attractively-priced solution with optimum reliability.
Wide range of applications.
Anti-corrosive design for moist and damp areas.
Compact format in timeless design.
Attractively-priced solution with optimum reliability.
Wide range of applications.
Anti-corrosive design for moist and damp areas.
For the user
Optimum wall and door protection thanks to “thinking” backcheck.
Constant closing speed virtually unaffected by temperature fluctuations, with adjustable latch action.
Smooth door action thanks to high mechanical efficiency.
Optimum wall and door protection thanks to “thinking” backcheck.
Constant closing speed virtually unaffected by temperature fluctuations, with adjustable latch action.
Smooth door action thanks to high mechanical efficiency.
Door closer TS 72 with scissor arm
The ideal solution for doors up to 1100 mm wide – tested and approved to EN 1154
The DORMA TS 72 is the ideal multi-purpose door closer for all standard door designs and constructions. Without a backplate, it is particularly easy and quick to fix. The spring strength can be individually adapted to the door size by means of an adjusting screw.
Certified to ISO 9001.
Benefits
The DORMA TS 72 is the ideal multi-purpose door closer for all standard door designs and constructions. Without a backplate, it is particularly easy and quick to fix. The spring strength can be individually adapted to the door size by means of an adjusting screw.
Certified to ISO 9001.
Benefits
For the distributor
Just one model for all standard doors.
Increased stocking flexibility thanks to use of the standard ClassicLine series arm..
Just one model for all standard doors.
Increased stocking flexibility thanks to use of the standard ClassicLine series arm..
For the installer/fabricator
Non-handed design.
Closing force, closing speed and latching action adjustable in just a few movements..
Non-handed design.
Closing force, closing speed and latching action adjustable in just a few movements..
For the architect/specifier
Outstanding value for money..
Compact construction combined with timeless design.
Outstanding value for money..
Compact construction combined with timeless design.
For the user
Constant closing action virtually unaffected by temperature fluctuations.
Optimum closing speed adjustment with two regulating valves.
Reliable closing with adjustable latching action.
Constant closing action virtually unaffected by temperature fluctuations.
Optimum closing speed adjustment with two regulating valves.
Reliable closing with adjustable latching action.

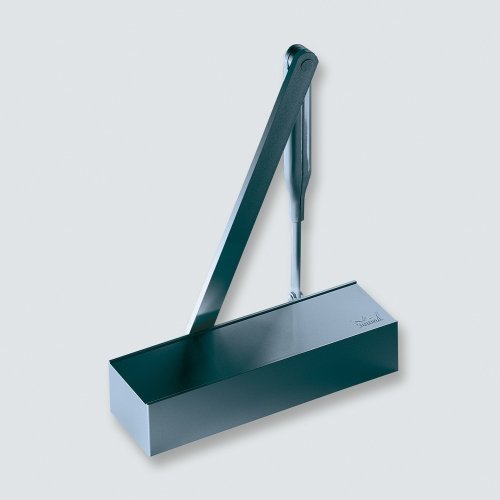

Door closer TS 71 with scissor arm
The inexpensive solution for standard doors – with quality assured
With the TS 71, DORMA has developed a door closer that rounds off its ClassicLine series perfectly. The ease and speed with which it can be fixed, the fact that its spring strength can be so easily adapted to the door size – by simply turning round the hinge plate – and its competitive price should make it the ideal choice for your application.
Certified to ISO 9001.
Benefits
With the TS 71, DORMA has developed a door closer that rounds off its ClassicLine series perfectly. The ease and speed with which it can be fixed, the fact that its spring strength can be so easily adapted to the door size – by simply turning round the hinge plate – and its competitive price should make it the ideal choice for your application.
Certified to ISO 9001.
Benefits
For the distributor
Increased stocking flexibility thanks to use of the standard ClassicLine series arm.
Complements the ClassicLine series as a competitive model for standard doors.
Increased stocking flexibility thanks to use of the standard ClassicLine series arm.
Complements the ClassicLine series as a competitive model for standard doors.
For the installer/fabricator
Non-handed design.
Easy and quick to fix.
Non-handed design.
Easy and quick to fix.
For the architect/specifier
Competitive and reliable.
Compact construction combined with classic design.
Competitive and reliable.
Compact construction combined with classic design.
For the user
Constant closing action virtually unaffected by temperature fluctuations.
Optimum closing speed adjustment with two regulating valves.
Reliable closing with adjustable latching action.
Constant closing action virtually unaffected by temperature fluctuations.
Optimum closing speed adjustment with two regulating valves.
Reliable closing with adjustable latching action.

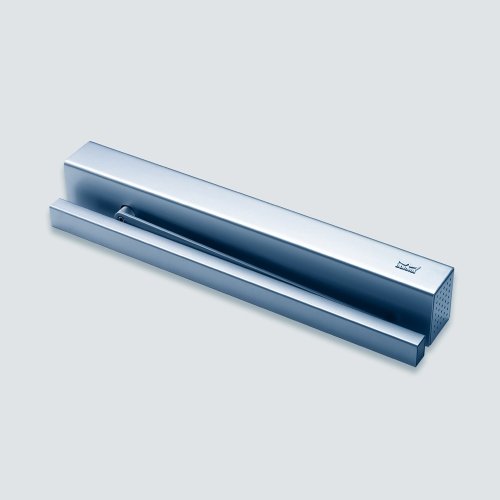

PORTEO. The Plus for the door. Opening and closing made easy.
PORTEO – the door assistant that adds convenience to doors
The PORTEO offers an innovative and convenient way to open and close doors effortlessly. With all the elegance of the DORMA Contur design, the PORTEO is specifically suited to interior doors, performing all the functions needed to make life just that little bit easier for all. High-quality DORMA technology makes the PORTEO particularly easy to operate – with minimum noise, high functional reliability and excellent application adaptability. The PORTEO is an integrated solution that comes in a complete package with slide channel and mounting backplate. It offers outstanding convenience and safety plus fast and easy installation, thanks to its impeccable “plug&go” credentials. The PORTEO can be further functionalised with original DORMA system accessories to give even more operating convenience, user-friendliness and enhanced safety. In combination with an optional pushbutton and an electric strike, for example, the door can be simply opened with fingertip control. For even greater opening and closing convenience, there is also a handheld transmitter available – there’s simply no more flexible a system. The PORTEO is the inexpensive solution for opening and closing doors the convenient way. Safe, reliable and readily retrofittable.
Certified to ISO 9001.
Benefits
The PORTEO offers an innovative and convenient way to open and close doors effortlessly. With all the elegance of the DORMA Contur design, the PORTEO is specifically suited to interior doors, performing all the functions needed to make life just that little bit easier for all. High-quality DORMA technology makes the PORTEO particularly easy to operate – with minimum noise, high functional reliability and excellent application adaptability. The PORTEO is an integrated solution that comes in a complete package with slide channel and mounting backplate. It offers outstanding convenience and safety plus fast and easy installation, thanks to its impeccable “plug&go” credentials. The PORTEO can be further functionalised with original DORMA system accessories to give even more operating convenience, user-friendliness and enhanced safety. In combination with an optional pushbutton and an electric strike, for example, the door can be simply opened with fingertip control. For even greater opening and closing convenience, there is also a handheld transmitter available – there’s simply no more flexible a system. The PORTEO is the inexpensive solution for opening and closing doors the convenient way. Safe, reliable and readily retrofittable.
Certified to ISO 9001.
Benefits
Door assistant for swing doors
Effortless opening and closing of swing doors up to a width of 1100 mm and a leaf weight of 80 kg.
Compact dimensions 60 x 530 x 80 mm (H x W x D), particularly suitable for use in conjunction with narrow-stile and standard profile door systems.
Extremely low overall height of just 60 mm.
One model for all four fixing options: pull and push side, transom-fixed or leaf-fixed
Easy installation thanks to “plug&go” supply, with standard mounting backplate
Near-silent operation
In DORMA Contur design, cubic lines, winner of the 2005 red dot award and “Le Janus de l’Industrie 2007"
GGT-approved
