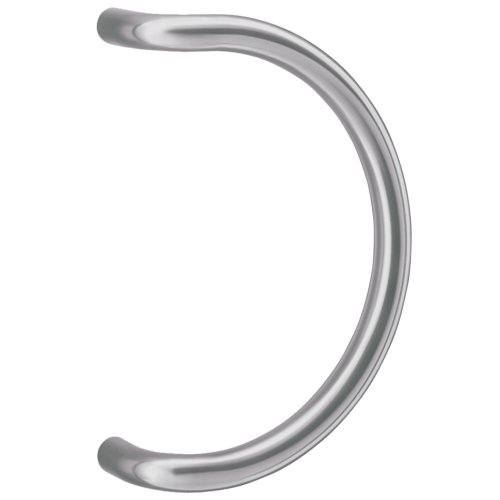

Pull handle TG 9304
Spiral spring double action door hinges
The DORMA ITS 96 has ushered in a new era in door closer technology. The closer body and slide channel are so compact that they can be installed out of sight in doors and their frames. These devices offer the same high quality expected of DORMA door closers, as characterised by their ease of operation for the user, and wide range of functions. Thanks to the exceptionally slender dimensions of the unit, the DORMA ITS 96 can be installed in virtually all doors with thicknesses of 40 mm or more, and offers all the advantages of quality assured manufacture with third-party auditing.
The DORMA ITS 96 has ushered in a new era in door closer technology. The closer body and slide channel are so compact that they can be installed out of sight in doors and their frames. These devices offer the same high quality expected of DORMA door closers, as characterised by their ease of operation for the user, and wide range of functions. Thanks to the exceptionally slender dimensions of the unit, the DORMA ITS 96 can be installed in virtually all doors with thicknesses of 40 mm or more, and offers all the advantages of quality assured manufacture with third-party auditing.
Benefits:
For the distributor
Low inventory costs and reduced stocking requirements thanks to streamlined modular system and separate packaging of closer body and slide channel assemblies.
Tailor-made applications with special accessories.
Low inventory costs and reduced stocking requirements thanks to streamlined modular system and separate packaging of closer body and slide channel assemblies.
Tailor-made applications with special accessories.
For the installer / fabricator
Non-handed system.
Can be incorporated within the door pre-fabrication process, allowing complete installation in the factory.
Easy adjustment of the closing strength, closing speed and latch action after hanging of the doors.
Non-handed system.
Can be incorporated within the door pre-fabrication process, allowing complete installation in the factory.
Easy adjustment of the closing strength, closing speed and latch action after hanging of the doors.
For the architect / specifier
Unblemished appearance of prestige doors thanks to concealed installation.
Ideal for doors integral to the interior design.
Unblemished appearance of prestige doors thanks to concealed installation.
Ideal for doors integral to the interior design.
For the user
Optimum protection against vandalism thanks to the concealed installation.
Enhanced user convenience and fully controlled, reliable closing with adjustable latch action.
Cushioned limit stay with progressive damping for protection of wall and door.
Optimum protection against vandalism thanks to the concealed installation.
Enhanced user convenience and fully controlled, reliable closing with adjustable latch action.
Cushioned limit stay with progressive damping for protection of wall and door.

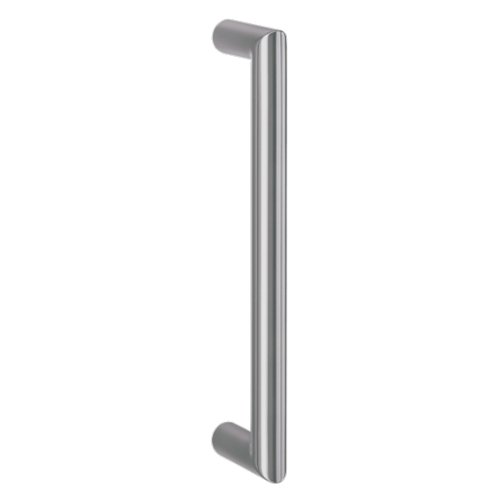

Pull handle TG 9335
High-tech for the global market
The DORMA TS 90 Impulse combines technical superiority with outstanding value, and unites advanced design with convenient functionality – all on the basis of its heart-shaped cam. With its installation versatility and inherent functional reliability, it is ideal for virtually any application.
DORMA TS 90 Impulse:
The DORMA TS 90 Impulse combines technical superiority with outstanding value, and unites advanced design with convenient functionality – all on the basis of its heart-shaped cam. With its installation versatility and inherent functional reliability, it is ideal for virtually any application.
DORMA TS 90 Impulse:
Benefits:
For the distributor
Unique DORMA cam action technology for the entry-level segment, compliant with EN 1154.
Complete package for easy stocking.
Sets new standards to open up new markets.
Unique DORMA cam action technology for the entry-level segment, compliant with EN 1154.
Complete package for easy stocking.
Sets new standards to open up new markets.
For the installer / fabricator
Easy to fix without mounting backplate.
Non-handed.
Four installation arrangements with one model.
Proven DORMA quality for long service life.
Easy to fix without mounting backplate.
Non-handed.
Four installation arrangements with one model.
Proven DORMA quality for long service life.
For the architect / specifier
Proven technology of the heart-shaped cam.
Cost-efficient slide channel door closer for interior doors.
Proven technology of the heart-shaped cam.
Cost-efficient slide channel door closer for interior doors.
For the user
Convenient, low-resistance opening with fully controlled closing.
Two regulating valves for precise adjustment of closing speed.
Available with hold-open and cushioned limit stay options.
Convenient, low-resistance opening with fully controlled closing.
Two regulating valves for precise adjustment of closing speed.
Available with hold-open and cushioned limit stay options.

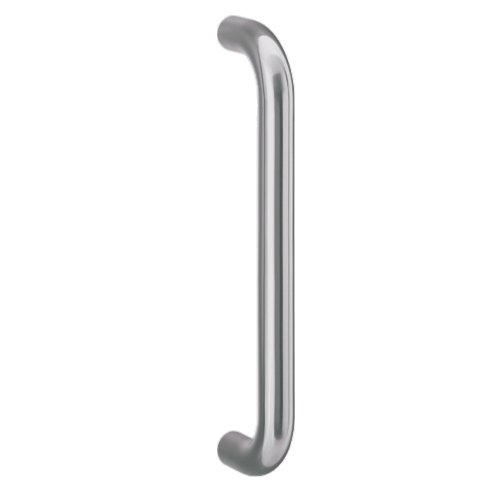

Pull handle TG 9355
More compact, lighter and more elegant.
DORMA has set new standards with its TS 93 cam-action door closer system. Offering further technical refinements and enhanced sophistication, it constitutes an even more impressive specification - thanks to:
Smaller dimensions
Concealed fixings
Height-adjustable standard (N) slide channel
30 mm high EMF, EMR and GSR slide channels
Mechanically secured cover
Delayed action feature as standard
Simple, fast installation
low weight
Rapidly decreasing opening force
Unlike rack and pinion slide-channel door closers, the DORMA TS 93 system with its the linear drive mechanism and heartshaped cam ensures that the resistance encountered when opening the door decreases almost instantly with the opening action. So even children, the elderly and handicapped people have no problem in opening the door.
DORMA has set new standards with its TS 93 cam-action door closer system. Offering further technical refinements and enhanced sophistication, it constitutes an even more impressive specification - thanks to:
Unlike rack and pinion slide-channel door closers, the DORMA TS 93 system with its the linear drive mechanism and heartshaped cam ensures that the resistance encountered when opening the door decreases almost instantly with the opening action. So even children, the elderly and handicapped people have no problem in opening the door.

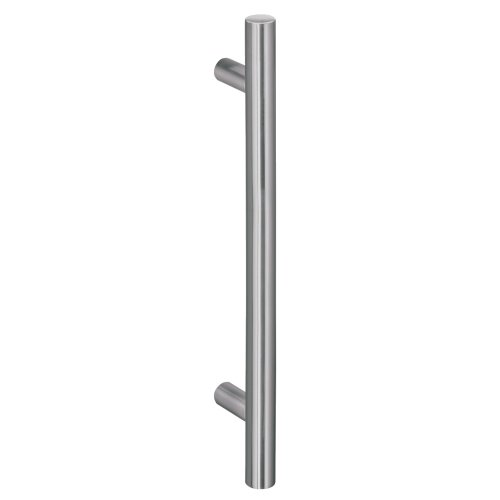

Pull handle TG 9387
The universal closers for standard doors – tested and approved to EN 1154
As units designed especially for interior applications, the DORMA TS 92 and TS 91 door closers constitute the perfect complement to the DORMA TS 93 cam-action door closer system. They likewise come in the Contur design and, thanks to their linear drive mechanism with heart-shaped cam, they offer the same ease of use. Moreover, their competitive pricing combined with their outstanding level of assured quality make them particularly attractive from an economic standpoint as well.
Benefits:
As units designed especially for interior applications, the DORMA TS 92 and TS 91 door closers constitute the perfect complement to the DORMA TS 93 cam-action door closer system. They likewise come in the Contur design and, thanks to their linear drive mechanism with heart-shaped cam, they offer the same ease of use. Moreover, their competitive pricing combined with their outstanding level of assured quality make them particularly attractive from an economic standpoint as well.
Benefits:
For the distributor
Inexpensive cam-action technology for standard interior doors.
Low storage costs and reduced inventory requirement thanks to uniform slide channels of the Contur series.
Inexpensive cam-action technology for standard interior doors.
Low storage costs and reduced inventory requirement thanks to uniform slide channels of the Contur series.
For the fabricator
Non-handed.
Easy to fix and quickly adjustable.
Non-handed.
Easy to fix and quickly adjustable.
For the architect/specifier
Excellent value for money.
Uniform appearance throughout the entire Contur slide channel range.
Excellent value for money.
Uniform appearance throughout the entire Contur slide channel range.
For the user
Exceptional ease of use and fully controlled closing action.
Optimum adaptability of the closing speed with reliable latching thanks to two regulating valves.
Exceptional ease of use and fully controlled closing action.
Optimum adaptability of the closing speed with reliable latching thanks to two regulating valves.

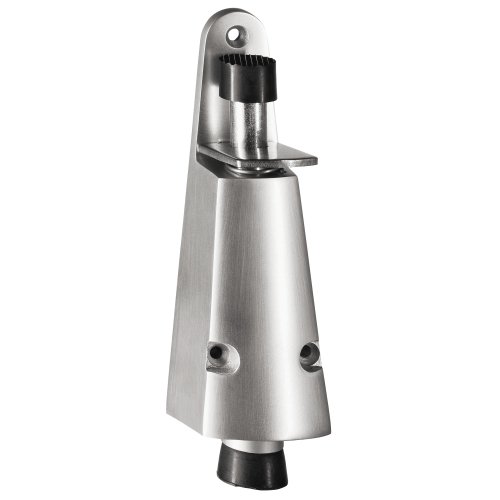

Door stop TZ 5563
DORMA telescopic door holder
Innovative design and sophisticated elegannce characterise the new line in DORMA door stops. Thanks to the modular principle applied in the creation of this system, you can freely select precicely the shape that best suits your needs:.
Stainless steel body
Rubber collar in black
Four bespoke head elements in stainless steel
Special designs can also be provided on request, including heads incorporating, for example,
your company logo.
Innovative design and sophisticated elegannce characterise the new line in DORMA door stops. Thanks to the modular principle applied in the creation of this system, you can freely select precicely the shape that best suits your needs:.
your company logo.

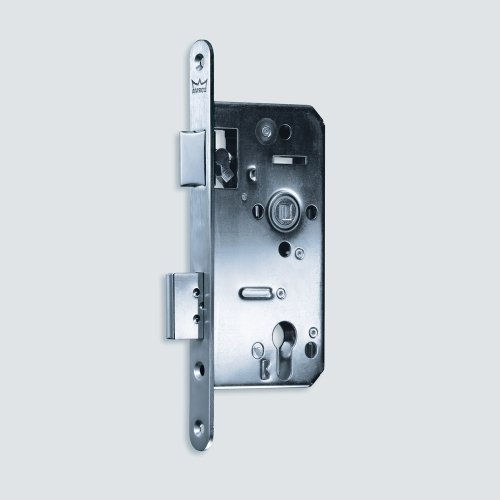

Mortice locks
DORMA Mortice locks for timber doors – a complete range of high quality products
DORMA locks offer the very highest standard of quality and functional reliability. With the use of high-grade materials, precise production techniques and a comprehensive quality management system, all DORMA locks meet demanding technical specifications. Additionally, locks conforming to the technical requirements of DIN 18251 and EN 12209 also offer unbeatable ease of use and security features. Locks from DORMA are also offered as a set. The package contains the Mortice lock with screws and strike plate.
Benefits
DORMA locks offer the very highest standard of quality and functional reliability. With the use of high-grade materials, precise production techniques and a comprehensive quality management system, all DORMA locks meet demanding technical specifications. Additionally, locks conforming to the technical requirements of DIN 18251 and EN 12209 also offer unbeatable ease of use and security features. Locks from DORMA are also offered as a set. The package contains the Mortice lock with screws and strike plate.
Benefits
For the distributor
The high quality satin stainless steel surface finish satisfies very high demands with respect to the appearance of the door furniture.
The high quality satin stainless steel surface finish satisfies very high demands with respect to the appearance of the door furniture.
For the distributor
The package contains the Mortice lock with screws and strike plate.
Non-handed lock version to reduce storage space.
Identical fixing screws for lock and strike plate simplify material management.
Having been assigned category of use grade 2 and 3 per EN 12209 the locks can also be reliably installed in buildings subject to heavy pedestrian traffic frequencies.
Optimated processes because DORMA locks and fittings are from one hand.
Not provided for fire-rated doors in Germany.
All the DORMA Mortice locks have following variations:
backset 55 mm; 60 mm; 65 mm; 70 mm; 80 mm
forend 20 mm, square; 20 mm, rounded; 24 mm, square; 24 mm, rounded
The package contains the Mortice lock with screws and strike plate.
Non-handed lock version to reduce storage space.
Identical fixing screws for lock and strike plate simplify material management.
Having been assigned category of use grade 2 and 3 per EN 12209 the locks can also be reliably installed in buildings subject to heavy pedestrian traffic frequencies.
Optimated processes because DORMA locks and fittings are from one hand.
Not provided for fire-rated doors in Germany.
All the DORMA Mortice locks have following variations:
backset 55 mm; 60 mm; 65 mm; 70 mm; 80 mm
forend 20 mm, square; 20 mm, rounded; 24 mm, square; 24 mm, rounded
For the installer
DORMA locks offer their precision by a simple,compatible assembling in standard door cuts.
DORMA locks have consistently uniform sizes each and are interchangeable,also between each series.
DORMA locks can be used universally by changing the latch handing, without using a tool.
DORMA locks achieve a long life because of a robust maintenance-free lock mechanism, even under difficult operating conditions.
DORMA locks can be commonly used with standard fittings, e.g. standard lever handles, profile cylinders, roses/escutcheons/ backplastes etc.
DORMA locks are subject to strict quality requirements and are tested and certified according to EN 12209. For applications with increased security requirements the locks are tested and certified in accordance with national and international standards.
DORMA locks offer their precision by a simple,compatible assembling in standard door cuts.
DORMA locks have consistently uniform sizes each and are interchangeable,also between each series.
DORMA locks can be used universally by changing the latch handing, without using a tool.
DORMA locks achieve a long life because of a robust maintenance-free lock mechanism, even under difficult operating conditions.
DORMA locks can be commonly used with standard fittings, e.g. standard lever handles, profile cylinders, roses/escutcheons/ backplastes etc.
DORMA locks are subject to strict quality requirements and are tested and certified according to EN 12209. For applications with increased security requirements the locks are tested and certified in accordance with national and international standards.

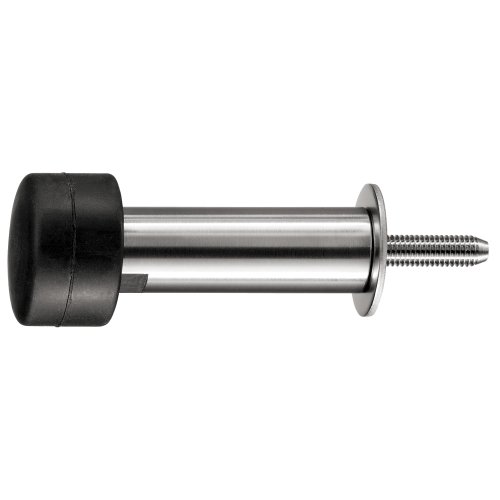

Door stop TZ 5012, TZ 5013, TZ 5014
DORMA wall mounted door stop
Innovative design and sophisticated elegannce characterise the new line in DORMA door stops. Thanks to the modular principle applied in the creation of this system, you can freely select precicely the shape that best suits your needs:
Stainless steel body
Rubber collar in black
Four bespoke head elements in stainless steel
Special designs can also be provided on request, including heads incorporating, for example,
your company logo.
TZ 5012, L 60 mm
TZ 5013, L 90 mm
TZ 5014, L 120 mm
Innovative design and sophisticated elegannce characterise the new line in DORMA door stops. Thanks to the modular principle applied in the creation of this system, you can freely select precicely the shape that best suits your needs:
your company logo.

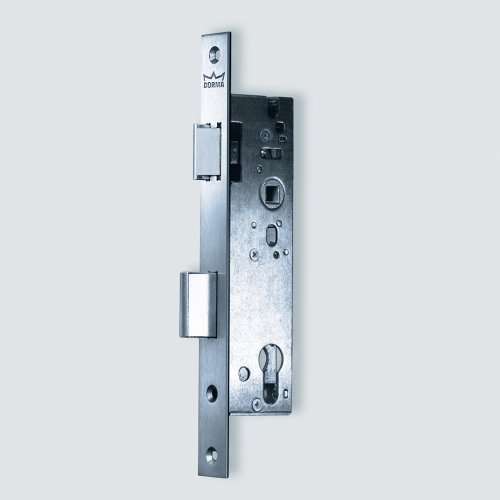

Narrow stile locks
Welcome to the safe side
DORMA locks offer compelling benefits thanks to assured high quality and functional integrity combining with long service lifetimes.
With high-grade materials, careful manufacturing and a comprehensive quality management system, these products are able to satisfy virtually all the technical requirements likely to arise. Conforming to DIN 18251 and EN 12209, DORMA locks offer unbeatable performance, convenience, safety and security.
Whichever solution you opt for, you can be sure that absolute reliability and engineering excellence will be included as standard.
DORMA locks offer compelling benefits thanks to assured high quality and functional integrity combining with long service lifetimes.
With high-grade materials, careful manufacturing and a comprehensive quality management system, these products are able to satisfy virtually all the technical requirements likely to arise. Conforming to DIN 18251 and EN 12209, DORMA locks offer unbeatable performance, convenience, safety and security.
Whichever solution you opt for, you can be sure that absolute reliability and engineering excellence will be included as standard.

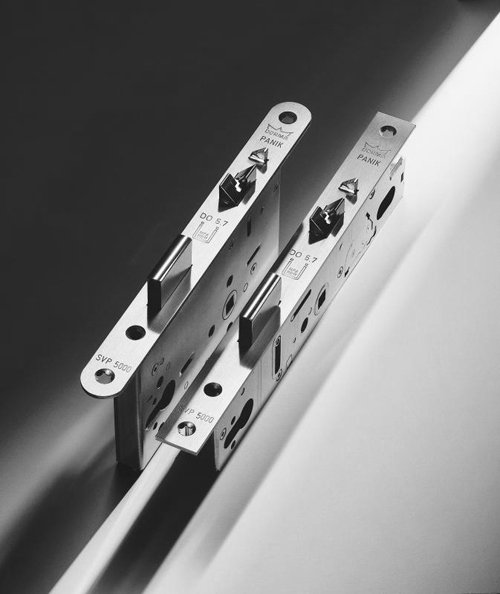

Anti-panic emergency escape locks
For easy use of fire and smoke check doors combined with safe closing in an emergency.
Doors that lock immediately on closure with the deadbolt being automatically thrown - this is the clear advantage offered by DORMA SVP/SVZ emergency escape and access control locks with automatic locking action. At the same time, the clawbolt latch engages to provide the added security of “two-point locking”.
The emergency escape function of the SVP locks ensures that the door can be easily unlocked and opened at any time from the inside simply by depressing the lever handle.
The range encompasses five model series:
Benefits:
Doors that lock immediately on closure with the deadbolt being automatically thrown - this is the clear advantage offered by DORMA SVP/SVZ emergency escape and access control locks with automatic locking action. At the same time, the clawbolt latch engages to provide the added security of “two-point locking”.
The emergency escape function of the SVP locks ensures that the door can be easily unlocked and opened at any time from the inside simply by depressing the lever handle.
The range encompasses five model series:
SVP 5000 - purely mechanical lock with emergency escape function.
SVP 4000 - electrically monitored microswitch lock featuring integrated anti-tamper detectors for monitoring the latch and deadbolt.
SVP 6000 - electrically monitored solenoid lock with anti-tamper detectors and split follower for electrical activation/deactivation of the external lever handle.
SVP 2000 - motor lock with sequential control for maximum security with anti-tamper detectors..
SVZ 6000 - access control solenoid lock, as per SVP 6000 but without the emergency escape function.
Benefits:
Automatic locking of doors immediately on closure.
Insurance companyapproved locking action with 20 mm deadbolt projection.
Two-point locking with deadbolt and engagement of the clawbolt latch.
Emergency escape function ensures that the door can be opened in the escape direction at any time by merely depressing the lever handle (not applicable in the case of the SVZ version).
Suitable for timber and metal-framed doors, prepared for both Europrofile and round cylinder inserts.
Through-bolt holes for backsets > 55 mm.
Forends 24 mm wide, non-handed.
Corrosion-protected lock case. Complete with forend and matching strike plate in stainless steel.

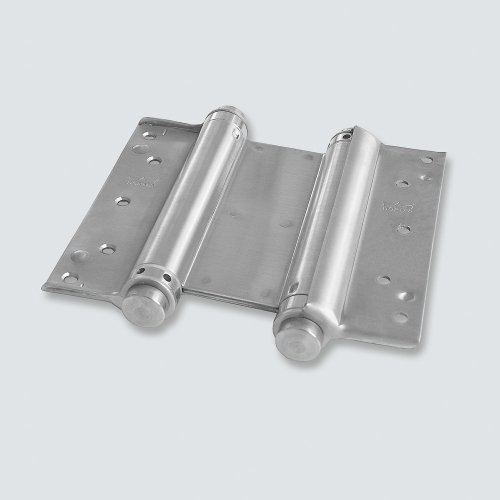

Hings
Spiral spring double action door hinges
Maintenance-free plastic pin bushings
Plastic spring sleeves for noiseless door operation
Stainless steel rivets
